Application

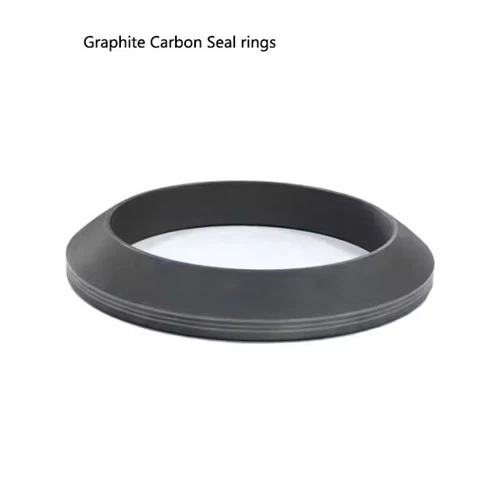

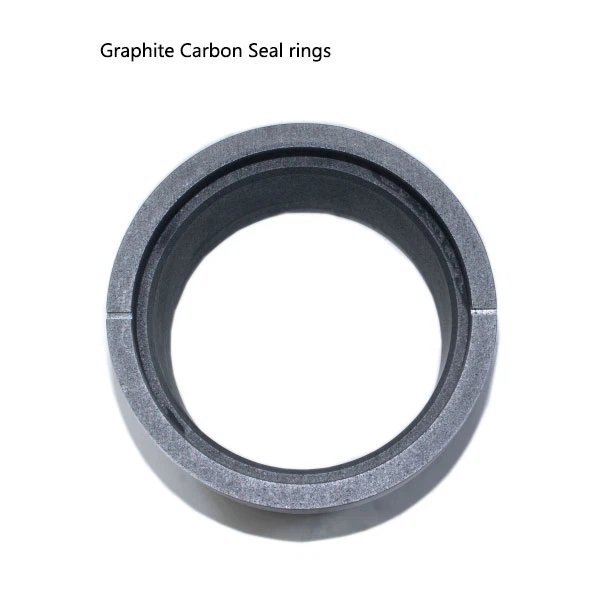

Carbon Graphite Seal Ring ,It can be used as seal products in petroleum, chemical, power generation and other industries to seal steam, hot water, hot oil, petroleum, hydrocarbons, chemical, solvent, etc.
How to customize your own carbon ring sealing?
First tell us the purpose of the carbon ring and the working temperature. We will choose the appropriate material based on this. Finally, send us the drawing, and we can make the carbon graphite ring sealing you want.
Material Data Sheet
|
Type |
impregnated material |
bulk density (g/cm³) |
Hardness shore (HS) |
Flexural Strength (MPA) |
compressive strength(MPA) |
Porosity ( %) |
Coeficient of expansion (10-6/oC) |
Max working temperature (oC) |
|
M106 G |
Silver(G) |
2.80 |
80 |
65 |
190 |
2.0 |
900 |
|
|
M106P |
copper(P) |
2.20 |
80 |
70 |
210 |
3.0 |
6.8 |
400 |
|
M106D |
Antimony(D) |
2.2-2.3 |
85 |
62 |
190 |
2.2 |
7.0 |
480 |
|
M154D |
2.2-2.3 |
70 |
55 |
150 |
2.2 |
7.0 |
480 |
|
|
M106A |
aluminium alloy(A) |
2.00 |
40 |
60 |
120 |
2.5 |
7.3 |
350 |
|
M106B |
Babbitt Alloy |
2.50 |
80 |
40 |
70 |
7.0 |
5.2 |
220 |
|
M106K |
resin |
1.75 |
80 |
60 |
176 |
1.0 |
4.0 |
200 |
|
M154K |
1.70 |
70 |
50 |
100 |
1.5 |
3.5 |
200 |
Pure Carbon Graphite Material Data Sheet
| W-4 | W-5 | W-6 | W-7 | W-8 | WH-5 | WH-7 | WH-8 | ||
| bulk density | g/cm³ | 1.75 | 1.85 | 1.9 | 1.82 | 1.9 | 1.68 | 1.85 | 1.9 |
| Resistivity | uΩm | 8-11 | 8-10 | 8-9 | 11-13 | 11-13 | 13-15 | 11-13 | 11-13 |
| Thermal conductivity(100℃) | W/m.k | 110-120 | 130-140 | 130-140 | 110-120 | 110-120 | 80-100 | 100-120 | 110-120 |
| Thermal expansion coefficient (room temperature - 600℃) | 10-6/℃ | 5.46 | 4.75 | 4.8 | 5.8 | 5.85 | 5.8 | 5.9 | 5.85 |
| Shore Hardness | HSD | 42 | 48 | 53 | 65 | 70 | 60 | 68 | 72 |
| Flexural strength | Mpa | 38 | 46 | 55 | 51 | 60 | 38 | 62 | 70 |
| Compressive strength | Mpa | 65 | 85 | 95 | 115 | 135 | 80 | 135 | 160 |
| Elastic modulus | GPa | 9 | 11.8 | 12 | 12 | 13 | 8.8 | 12 | 13 |
| Porosity | % | 17 | 13 | 11 | 12 | 11 | 18 | 12 | 11 |
| Ash | PPM | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Purification of ash | PPM | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| grain size | um | 13-15 | 13-15 | 8-10 | 8-10 | 8-10 | 8-10 | 7 | 5 |
| Application | common use | common use | Continuous casting, sintering, high temperature metallurgy | EDM,Photovoltaic | EDM,Photovoltaic,GLASS | EDM | common use,EDM | EDM,Photovoltaic,GLASS |

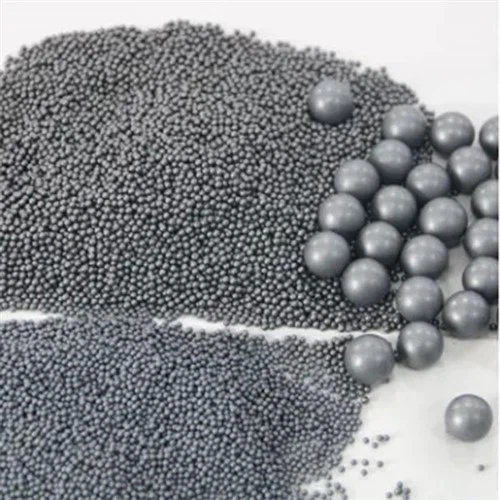

More carbon graphite products for your reference
