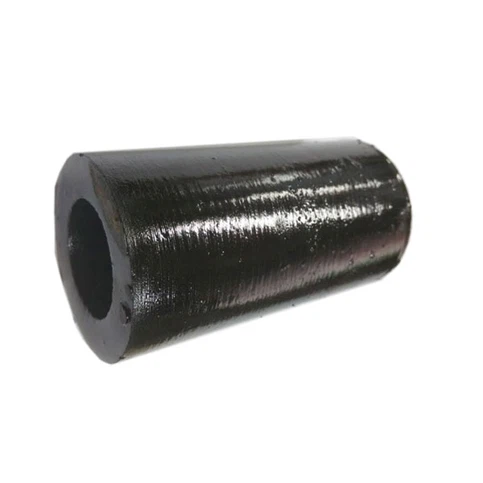

Mechanical Seal Carbon Material Resin Carbon Rod Blank is mainly used as raw material for machining carbon components for mechanical seals, and is applied in rotating equipment such as pumps and compressors.
Applications
Pump Industry:
Mechanical Seal Carbon Material Resin Carbon Rod Blank, after being machined into carbon sealing rings, is installed in the mechanical seal structure of pumps, forming a sealing end face with the mating sealing ring under shaft rotation.
Compressor and Vacuum Equipment Industry:
In compressors and vacuum pumps, mechanical seal carbon components made of this material are used at the shaft sealing position to seal the gas passage during shaft rotation.
Chemical and Process Equipment Field:
In equipment such as agitators and reactors, sealing components machined from this carbon rod blank are installed at the agitator shaft, forming a seal against the process medium when the shaft rotates.
Impregnated graphite datasheet
|
Type |
impregnated material |
bulk density (g/cm³) |
Hardness shore (HS) |
Flexural Strength (MPA) |
compressive strength(MPA) |
Porosity ( %) |
Coeficient of expansion (10-6/oC) |
Max working temperature (oC) |
|
M106 G |
Silver(G) |
2.80 |
80 |
65 |
190 |
2.0 |
900 |
|
|
M106P |
copper(P) |
2.20 |
80 |
70 |
210 |
3.0 |
6.8 |
400 |
|
M106D |
Antimony(D) |
2.2-2.3 |
85 |
62 |
190 |
2.2 |
7.0 |
480 |
|
M154D |
2.2-2.3 |
70 |
55 |
150 |
2.2 |
7.0 |
480 |
|
|
M106A |
aluminium alloy(A) |
2.00 |
40 |
60 |
120 |
2.5 |
7.3 |
350 |
|
M106B |
Babbitt Alloy |
2.50 |
80 |
40 |
70 |
7.0 |
5.2 |
220 |
|
M106K |
resin |
1.75 |
80 |
60 |
176 |
1.0 |
4.0 |
200 |
|
M154K |
1.70 |
70 |
50 |
100 |
1.5 |
3.5 |
200 |
We also produce other carbon graphite products for your reference below:
Graphite products for powder metallurgy industry Sintered graphite molds
High-Temperature Resistant Purity Carbon Graphite Rocket Nozzle
Graphite Large Diameter Graphite Tube
High-Performance Graphite Rods with Excellent Thermal Conductivity
High Pure Carbon Graphite Bearing
Antimony Impregnated Segment Carbon Graphite Seal Rings
Cold and Hot water Pumps Parts Graphite Bushing
Graphite Blade Carbon Vane For Vacuum Pump
Impregnated Antimony Carbon Graphite Bushings
Production workshop display
FAQ
Q: Can you customize sizes and specifications?
A: Yes, we support customization of carbon rod diameter, length, and tolerance range according to drawings or technical parameters to meet the processing needs of different mechanical seal parts.
Q: What are the material forming methods?
A: We can provide molded or extruded carbon rod blanks, and can also provide rough-machined or unmachined states upon request.
Q: Can you adjust the material formulation?
A: Yes, we can adjust the resin type, carbon material ratio, and impregnation process according to procurement needs to match different mechanical seal application conditions.
