Metal-impregnated carbon rods for mechanical seals are commonly used in mechanical seal systems and are widely applied to sealing components of pumps, bearings, compressors, and other equipment in industries such as chemical, petroleum, metallurgy, and shipbuilding.
Applications
Chemical Industry
In chemical pumps and reactors, a tight seal is formed with the pump body and shaft to prevent leakage of chemical media in high-pressure and corrosive environments.
Oil and Gas Industry
Prevents liquid or gas leakage by filling gaps between the pump shaft and sealing components.
Marine Industry
Seals marine seawater pumps and propulsion systems to prevent seawater from penetrating the mechanical system, avoiding corrosion and wear.
Metallurgical Industry
Maintains a seal by utilizing its high-temperature and corrosion-resistant properties to prevent leakage of molten metal or gas.
Machinery Manufacturing Industry
Prevents lubricating oil or gas leakage by filling sealing gaps.
Impregnated graphite datasheet
|
Type |
impregnated material |
bulk density (g/cm³) |
Hardness shore (HS) |
Flexural Strength (MPA) |
compressive strength(MPA) |
Porosity ( %) |
Coeficient of expansion (10-6/oC) |
Max working temperature (oC) |
|
M106 G |
Silver(G) |
2.80 |
80 |
65 |
190 |
2.0 |
900 |
|
|
M106P |
copper(P) |
2.20 |
80 |
70 |
210 |
3.0 |
6.8 |
400 |
|
M106D |
Antimony(D) |
2.2-2.3 |
85 |
62 |
190 |
2.2 |
7.0 |
480 |
|
M154D |
2.2-2.3 |
70 |
55 |
150 |
2.2 |
7.0 |
480 |
|
|
M106A |
aluminium alloy(A) |
2.00 |
40 |
60 |
120 |
2.5 |
7.3 |
350 |
|
M106B |
Babbitt Alloy |
2.50 |
80 |
40 |
70 |
7.0 |
5.2 |
220 |
|
M106K |
resin |
1.75 |
80 |
60 |
176 |
1.0 |
4.0 |
200 |
|
M154K |
1.70 |
70 |
50 |
100 |
1.5 |
3.5 |
200 |

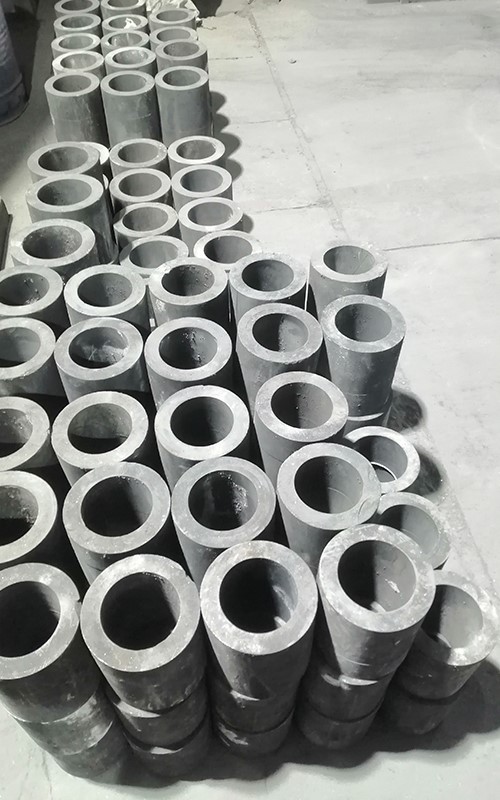

Professional packaging can make your goods safer
